Application

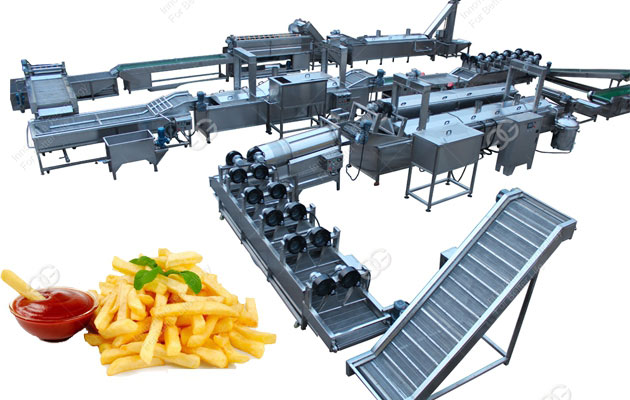

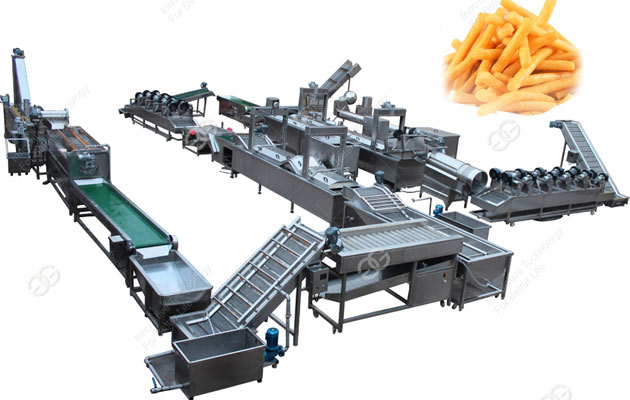

This automatic frozen potato chips processing line is mainly used to produce frozen potato chips, which is automatic from feeding material to finished potato chips.

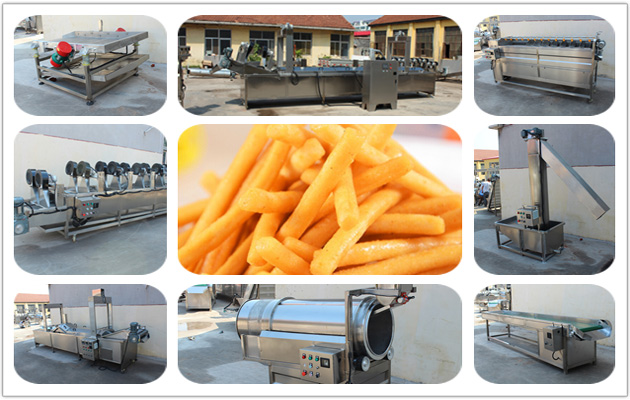

Following is the introduction of the main machines:
Pre-Washing Peeling Machine

This elevator will take the potato to pre washing machine to wash and remove the mud on the surface. The electric is using Schneider, and the Frequency Converter is from Japanese Mitsubishi. Motor working speed is adjustable. By Elevator, the potato will come into the Pre-washing Machine, by brush roller and water spraying to remove the mud on the surface of potato

Sorting Conveyor

After potato peeled, the potato will come into the sorting conveyor. Then can sort the unqualified potato,potato is not peeled well.If the the potato is not peeled well,then process it. The conveyor is made of PVC Superior Food Standard Conveyor, healthy and safe,meet food requirement. All plate made of Stainless Steel 304, the motor are speed adjustable,conveyor working is adjustable.Dimension of 5000*1000*950mm, bearing seat are FL206 Stainless Steel bearing seat.Seat made of Stainless Steel 304,height is adjustable.

Potato Chips Cutting Machine

After sorted well, qualified potatoes will be put into the cutting machine. It can cut continuous.

Impurity Removing Machine

After the potato chips finished cutting, elevator will send potato chips to the Impurity Removing Machine. To adjust the distance between rollers, general it is 4mm soft brush roller. Potato chips will go down under working of brush roller. If the size of potato chips is less than 4mm, it will leave out. There is one material receiving tank. Thus it can get the effect of sorting. Brush roller material is food standard nylon yarn.

Rinsing Machine

After the potato chips coming from the Impurity Removing Machine, the qualified potato chips will drop the Rinsing machine directly. By bubble Agitator Wave Wash, the potato chips will be in roll state, thus it can remove the starch on the surface of potato chips.It also with second water spraying function. All bubble produce device are with speed adjustable.All mesh are with size of 5mm.Width of belt is 800mm

Blanching Machine

After rinsed , potato chips will coming into blanching machine, this blanching machine is adopts with electricity heating. Water temperature is controlled, all material are made of stainless steel 304, all bearings are Stainless steel 304, and stainless steel 304 bearing seat.

Vibrating De-watering Machine

After blanched, potato chips will be sent to Vibrating De-watering Machine, with frequency vibrate to remove the water on the surface.This machine is made of Stainless Steel 304,thickness of 3mm. Superior stainless steel 304 tube,vibrate motor of 0.25kw,amplitude is adjustable. Working Principle:under high frequency vibrating, the water on the surface on potato chips, then the potato chips will come into the air de-water machine under vibrating.

Air De-watering Machine

After Vibrating dewatering machine, the potato chips will coming into the air de-watering machine, thus the water will remove completely. This air dewater line is made of Stainless Steel 304, frequency control motor speed,mesh type to be six turn one flat, width of belt is 1200mm. total 16 pcs of fan, power of each fan is 750W. The air intake vent is with high-density filter system.The bearing are made of superior stainless steel, height of fan is adjustable.

Frying machine

This machine is made of pure oil process technology, it is with dynamic filting system, it can filt and discharge the residue automatically to make sure the qulity of the oil. All made of Stainless Steel 304, Power of 2.2kw frequency control speed motor, three parts to control temperature, mesh conveyor width of 1200m ,with elevator function automatically. It will be easier to clean. It is with double layer mesh conveyor, upper and down conveyor all frequency control, oil temperature is adjustable from normal temperature to 300 centigrade. The electrical is from Schneider or Omron.There is not oil adding port.
