Industrial Meat Bone Grinder Machine|Colloid Mill Machine Price

  • Output:
  • Voltage:
  • Power:
  • Payment Method:

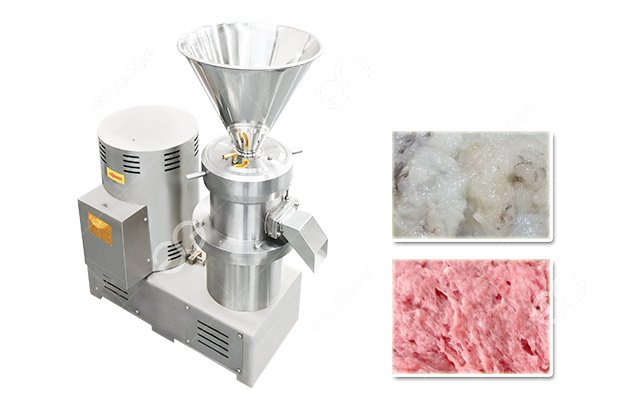

Description of Meat Bone Grinder
This machine is called colloidal mill machine, the machine is specially designed for grinding bones, meat and nut materials, this machine with best price for customers. Processing Flow of Grinding Bone: The chicken skeleton, duck bone, fish bone, crab shell, pig bone, bovine bone and other materials with broken bone machine after crushing, and then use the grinder machine for grinding processing, eventually made of bone mud. Meat bone grinder is on the basis of the colloid mill to improve the equipment, mainly for the processing of emulsified pigskin, chicken bone mud, duck bone mud, surimi, chicken pulp, shrimp slurry and so on, the machine used in the grinding head for a special tooth type, higher hardness, material grinding, the effect is more delicate, more uniform organization.

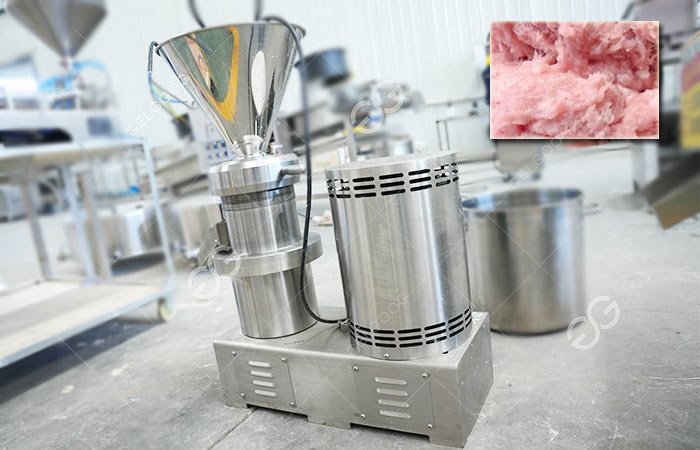

Meat Bone Grinder

This industrial bone grinder is widely used in a variety of sausages, ham, lunch meat, meatballs, instant noodles seasoning, flavors, soups, pet food, frozen foods, cartilage, bone glue, bone meal, high calcium food, health products and so on. The mobile power is large, good crushing effect, large output, simple operation, easy to clean, safe and reliable, is a meat processing plant, slaughtering processing plants, food distribution centers, bio-health products processing plants can choose the assured equipment.

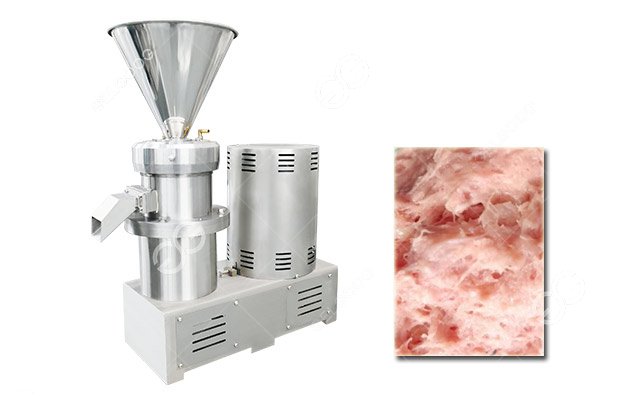

Industrial Bone Grinder Machine
Colloid Mill Machine Features
1. This industrial bone grinder is used for chicken bone, fish bone, duck bone, pig bone, ox bone and others materials, also for meat, nut and so on.
2. It made of high quality food grade materials, the food contact parts uses the stainless steel 304, products are durable, produced products health and hygiene.
3. This colloid mill machine has many different models, the capacity from 80 to 800kg per hour.
4. This maneuver force is big, the crushing effect is good, the output is big, the operation is simple, the cleaning is convenient, safe and reliable.
5. The grinding machine adopts special processing and heat treatment process, high processing precision, long service life.
6. The machine is equipped with different structures and tooth types, such as grinding and shearing, and the user can choose according to their needs.
7. Wide applicability, the grinding machine product design has ordinary in and out materials, tube-type and circulation processing and other structures to meet user requirements.

Working Video of Industrial Bone Grinder

Advantages of Meat Bone Grinder

We focused on the food processing characteristics of the material in the machine's internal structure and materials of the material used to take a differentiated design, grinding based in part on the characteristics of the material for special processing, so that the material processing fineness further increase, increased yields, can adjust the thickness of the grinding head design, more able to adapt to the customer's requirements, water circulation pipe diameter increased, increasing the water flow, greatly reducing the temperature of the material, so that the product tastes closer to nature.

Technical Data
Model GGJM-50 GGJM-60 GGJM-85 GGJM-130 GGJM-180 GGJM-200
Capacity(kg/h) 5-30  50-80 100-200 200-300 300-500 500-800
Power 1.1(380V)/1.5(220V) 3kw,380V/220V 5.5KW,380V 11KW,380V 22KW,380V 30KW,380V
Grinding Fineness(mesh) 150-200 120-150 150-200 150-200 150-200 150-200
Dimension(mm) 530*260*580 680*330*600 1000*500*1000 1200*500*1200 1300*550 *1300 1400*550*1400
Weight(KG) 50KG 85 160 220 350 440
