100KG/H Industrial Chana Roaster Machine|Chickpea Roasting Machine Electric
Output:200-2000kg/h- Voltage:380V
- Power: /
- Payment Method: T/T, L/C, Western Union
Get Price
Chat OnlineFeatures

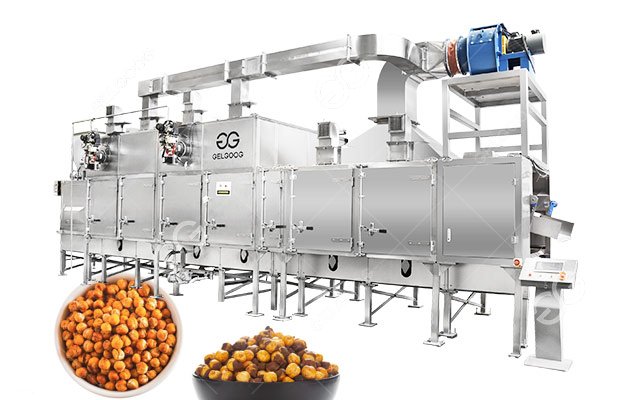

Introduction of the Industrial Chana Roaster Machine
This chana roasting machine is used to baked various nut kernels, for example, chana, peanuts, chestnuts, walnuts, almonds, broad bean, melon seeds and other granular material. It has the features of large production ability, wide range of uses, easy operation, etc.
Chickpeas roaster is a drum type structure, the material can be fully baked, and each machine's capacity is 100 kg/h. This roasting machine has a variety of heating methods, electric heating, gas heating and others.
Chickpeas roaster is a drum type structure, the material can be fully baked, and each machine's capacity is 100 kg/h. This roasting machine has a variety of heating methods, electric heating, gas heating and others.
Advantages of Electric Chana Roasting Machine
1. High quality: This series roaster machines' all food contacting parts, inner drum, up and down hopper etc made of stainless steel 304, corrosion-resistant, durable.
2. Free adjustment of temperature: The temperature of the roaster machine can be adjusted according to its own requirements from 0-300℃.
3. Baking quality is good, the finished product color is uniform, equipped with a light device in the machine, after roasted will automatically stop working.
4. Easy to use: Automatic roasting, discharge; chana roasting machine has high efficient and low maintenance, industrial use.
5. Widely usage: Chickpea roasting machine is suitable for baking of granular materials, such as chana, peanut, sesame, watermelon seed, etc.
Testing Video of Industrial Chana Chickpea Roaster Machine
Testing Video of Industrial Chana Chickpea Roaster Machine

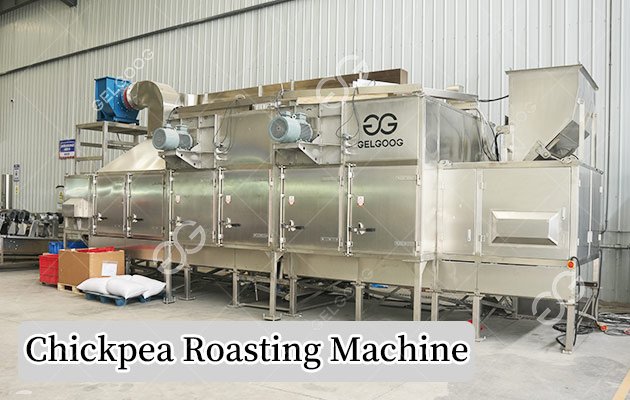

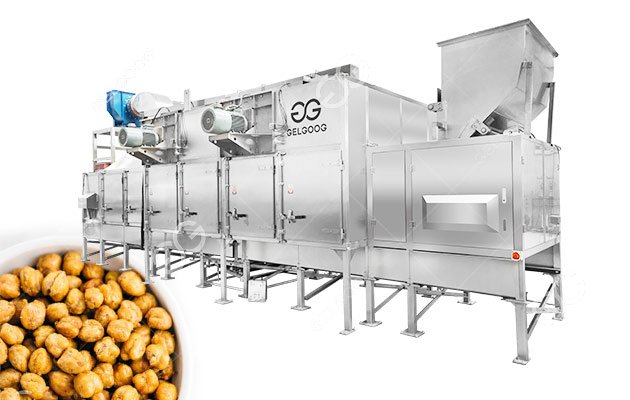

Structure and Performance of Chickpea Roasting Machine
This machine uses the high-temperature flue gas circulation heat dissipation method to radiate thermal energy to the baked object through the heat dissipation pipe. The roasting machine is made of metal material and is a kind of joint baking machine. It can be used in a single machine or in combination with multiple units, it is compact and easy to operate.
The cycloidal pinwheel reducer is used as the power, and the drum is rotated by the chain drive for baking. The machine consumes less coal (oil, gas), has high heat dissipation, and is non-polluting. In addition, the oven body is insulated with light insulation material to ensure the normal working temperature of the oven.
The cycloidal pinwheel reducer is used as the power, and the drum is rotated by the chain drive for baking. The machine consumes less coal (oil, gas), has high heat dissipation, and is non-polluting. In addition, the oven body is insulated with light insulation material to ensure the normal working temperature of the oven.
Industrial Chana Roasting Process
Usually includes cleaning, peeling, roasting, cooling, seasoning, and packaging. First, the raw chanas are cleaned to remove impurities and dust. Then fed into the roasted chana machine for continuous roasting under controlled temperature conditions.
After roasting, the products are cooled naturally or by a cooling system to maintain crispy texture and good flavor. The roasted chana can be directly packaged or further processed into flavored snack products.
FAQ About Continuous Roasted Chana Machine
1. What capacity options are available?
The standard range is 100-2000 kg. Capacity can be customized according to production requirements.
2. Can roaster machine guarantee roasting consistency?
Yes. Continuous hot-air circulation and drum rotation ensure stable and uniform roasting quality.
3. What heating method is more cost-effective?
Gas heating is usually more economical for high-capacity production. Electric heating provides more precise temperature control. The final choice depends on local energy cost and factory conditions.
4. Is it suitable for long-time continuous operation?
Yes. The machine is built for continuous industrial operation and can run stably for long working hours.
5. Can roasting machine be customized for different nuts?
Yes. Temperature, speed, and structure can be adjusted for different nut types and roasting levels.
Technical Data
| Model | Dimension(mm) | Output (kg/h) | Motor Power | Electrical Heating | Gas Heating |
| GGMHK-0 | 2000*1200*1600 | 60-80 | 1.1 kw | 16 kw | |
| GGMHK-1 | 3000*1200*1700 | 80—120 | 1.1 kw | 18 kw | 2-3 kg |
| GGMHK-2 | 3000*2200*1700 | 180—250 | 2.2 kw | 35 kw | 3-6 kg |
| GGMHK-3 | 3000*3300*1700 | 280—350 | 3.3 kw | 45 kw | 6-9 kg |
| GGMHK-4 | 3000*4400*1700 | 380—450 | 4.4 kw | 60 kw | 9-12 kg |
| GGMHK-5 | 3000*5500*1700 | 500--650 | 5.5 kw | 75 kw | 12-15 kg |
