1 ton/h Pineapple Juice Production Line in Malaysia
2026-06-24 by Lisa
A 1 ton/hour pineapple juice production line developed for our Malaysian client has recently undergone successful final acceptance at the GELGOOG Global R&D and Manufacturing Center.

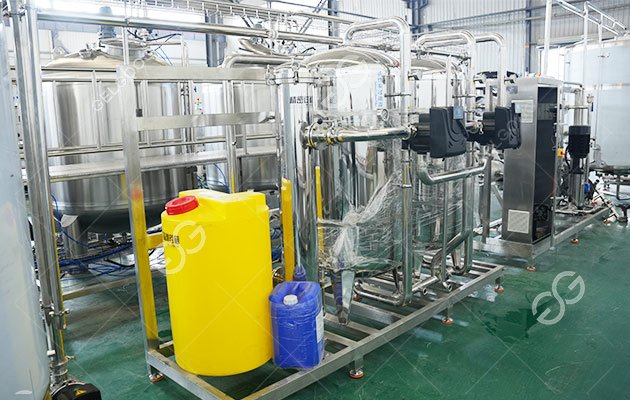

The pineapple juice project was evaluated across the complete production sequence, where fresh pineapple is processed through receiving, sorting, washing, size reduction, juicing, filtration, formulation, sterilization, and automated packaging. Each stage is integrated into a centralized control system designed to maintain process stability and ensure consistent product output during continuous operation.
All equipment of pineapple juice production line in Malaysia was tested under full-load conditions, and the system demonstrated reliable performance and coordinated operation across all modules. Following on-site verification, the client confirmed the results of the acceptance testing.
Pineapple Juice Processing Workflow

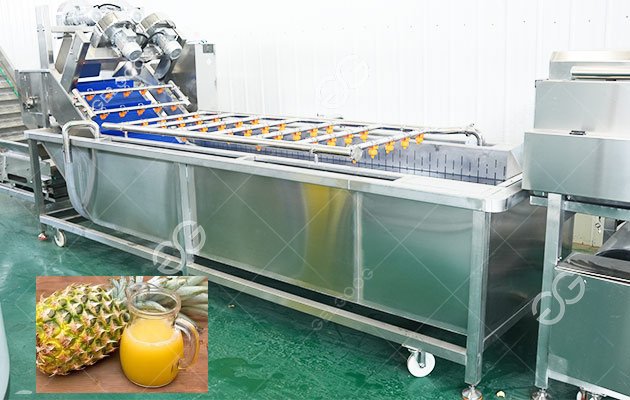

This machine inspection begins with the raw material handling stage. After entering the production line via the infeed conveyor system, fresh pineapples first pass through a manual sorting station where substandard fruit is removed, ensuring quality at the source. The fruit then undergoes a dual-stage cleaning process: involving both brush washing and bubble washing, to effectively remove soil and impurities from the skin and crevices without damaging the fruit, thereby providing a clean and safe foundation for subsequent processing.
The washed pineapples are transported by a lifting conveyor into the crushing system and then steadily fed by a pump into a high-speed juice extractor. As the core stage of this pineapple juice production line in Malaysia, the system ensures a high juice yield while maximizing the retention of the pineapple's original flavor and nutritional content. The extracted raw juice is temporarily held in a storage tank and undergoes preliminary filtration via a vibrating screen to remove coarse pulp particles, resulting in a purer, smoother juice.

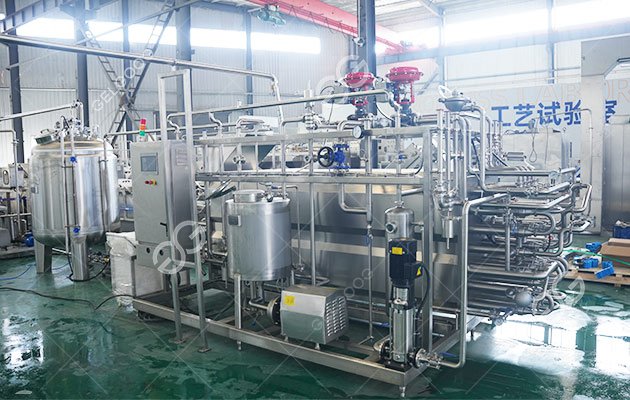

The filtered juice enters the blending and fine-processing system, where sugar, water, and juice are automatically metered and precisely proportioned to ensure flavor consistency across batches. During actual operation in Malaysia, the system employs high-pressure homogenization and vacuum degassing to create a smoother, more stable texture, effectively preventing separation and air bubble formation. The product then passes through an Ultra-High Temperature (UHT) sterilization system, which ensures food safety while preserving flavor and nutrients.
The filling stage utilizes a 3-in-1 filling unit that integrates rinsing, filling, and capping into a single automated operation, characterized by high efficiency, precision, and hygiene standards. After filling, the product undergoes bottle-inversion sterilization, spray cooling, and air drying; these steps effectively sterilize the bottle mouth and the inside of the cap, further ensuring consistent product quality and safe long-term storage for the Malaysian pineapple juice project.
For the downstream packaging and logistics stages, this pineapple juice production line in Malaysia is equipped with a fully automatic sleeve labeling machine, a laser coding machine, a film wrapping machine, and an automatic palletizing system. This setup ensures seamless integration from production and packaging to warehousing, significantly boosting overall operational efficiency and automation levels.
GELGOOG 12,000 m² R&D facility and in-house lab were critical to this Malaysian pineapple juice project. They allowed us to validate the entire pineapple juice process using the client's actual fruit samples before delivery, eliminating surprises during on-site commissioning.
Based on this technical foundation, our solutions are designed to deliver stable operation, efficient processing performance, and long-term applicability in industrial juice production projects.
The same line can be swiftly reconfigured to process orange, apple, or mango juice, as well as fruit jams, with minimal changeover time. This built-in versatility transforms today's pineapple-focused asset into a multi-product production hub.
Additionally, GELGOOG offers equipment upgrade and retrofit services. Through technical optimization, we extend equipment lifespan and enhance operational efficiency, enabling existing production lines to deliver greater value.
The successful completion of the equipment inspection marks the transition of this pineapple juice production line in Malaysia into the formal delivery and commissioning phase. It further demonstrates GELGOOG comprehensive capabilities in turnkey juice processing solutions, system integration, and project delivery. If you are interested in pineapple juice or other juice processing projects, please feel free to contact us for more information.
